Steel Mills and Foundries

High-Volume Material Validation and Certification for Melting, Casting, and Mill Operations.

Primary metal production, casting operations, and downstream processing require rigorous verification of structural variables. As an independent laboratory, MSI Lab offers commercial steel mills, foundries, and toll-slitting facilities destructive testing backed by A2LA ISO/IEC 17025 Accreditation to meet ASTM, ASME, and strict procurement standards without excessive network lab overhead.

Core Testing and Analytical Capabilities:

  • Mechanical Property and Tensile Verification: Uniaxial tensile testing per ASTM E8 / E8M to determine yield strength, ultimate tensile strength, elongation, and reduction of area—including rapid verification of slit coil samples to confirm properties across coil widths.

  • Microhardness and Macrohardness Profiling: Rockwell and Brinell testing per ASTM E18 and ASTM E10, plus Vickers/Knoop microhardness mapping per ASTM E384 for case depths and gradients.

  • Coating Mass and Surface Layer Evaluation: Gravimetric strip-and-weigh testing to measure protective zinc or zinc-iron alloy coating mass thickness, triple-spot averages, and distribution uniformity in strict compliance with ASTM A653/A653M-23 on incoming or processed coil stock.

  • Production Heat and Product Chemical Analysis: High-precision elemental quantification and alloy tracking utilizing Glow Discharge Spectroscopy (GDS), specialized Carbon and Sulfur combustion analyzers, inert gas fusion Elemental analyzers, and X-ray Fluorescence (XRF) to monitor chemistry constraints and interstitial tramp elements.

  • Metallographic Quality and Cast Defect Characterization: Optical evaluation to quantify non-metallic inclusions (ASTM E45) and grain size (ASTM E112), and diagnose cast porosity defects.

Prime Certifications and Specifications Met:

  • A2LA ISO/IEC 17025 Accredited (Certificate #2037.01) ensuring full international calibration and testing competency compliance.

  • Independent Third-Party Verification completely free from mill bias, providing certified, legally defensible material test reports (MTRs).

  • Fully equipped to support suppliers needing independent testing aligned with ASTM, ASME, and major commercial manufacturing quality audits.

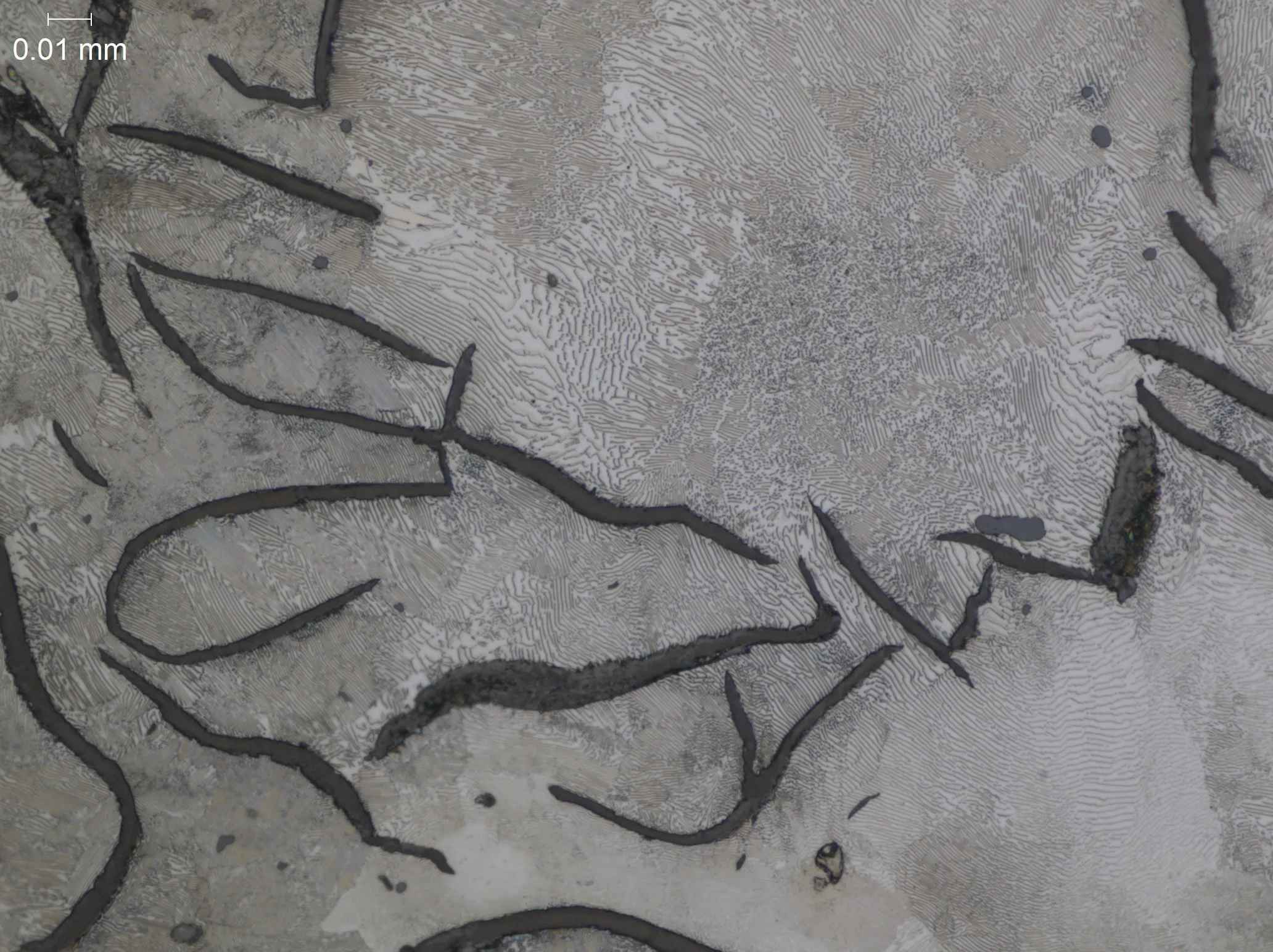

Optical photomicrograph showing the graphite flake morphology and matrix structure of an etched gray cast iron specimen for foundry quality verification.

Gray Cast Iron, Etched

Optical photomicrograph illustrating graphite nodule distribution and ferrite-perlite phase morphology in a ductile cast iron sample.

Ductile Cast Iron, Ferrite-Perlite

Metallographic cross-sectional evaluation of a galvanized coating on a steel substrate, analyzing zinc-iron alloy layer thickness and boundary morphology for ASTM A653 compliance.

Galvanized Coating, Cross Section
